Woodheater Sales
Arrow 2400 Satin Black
SPECIFICATIONS:
Dimensions (mm) 835W x 960H x 600D
Heating Area Up to 315 sq/m 35 squares
Hearth requirements 500mm
Logs up to 22 inch
Clearances:
Rear 150mm Side 380mm Corner 100mm
3 speed fan
Cast Iron liners for longer life
Australian made and owned
$2290
Pioneer
SPECIFICATIONS:
Dimensions (mm) 630W x 785H x 530D
Heating Area Up to 232 sq/m 25 squares
Hearth requirements 300mm
Logs up to 20 inch
Clearances:
Rear 300mm Side 700mm Corner 535mm
Optional extras:
Shielding can be purchased to reduce distances
Australian made
$3750
Coonara SETTLER C500
SPECIFICATIONS:
Dimensions (mm) 650W x 840H x 565D
Heating Area Up to 198 sq/m 22 squares
Hearth requirements 440mm
Logs up to 18 inch
Clearances:
Rear 75mm Side 350mm Corner 200mm
3 speed fan
Cast Iron liners for longer life
Australian made and owned
Freestanding heaters
Gourmet Cooker Dry
With 5Kw wetback $4750
With 8kw wetback $5000
With 15kw wetback $5700
Heats up to 180sq/m 20 sqaures
Dimensions: Clearances:
Height 910mm Rear 125mm
Width 700mm Side 400mm
Depth 560m
$ 3750
Coonara settler ranch 500
This model has the same firebox as the Coonara I500,
But is rasie
d and has wood storage area, to keep your wood close and dry
Coonara Range

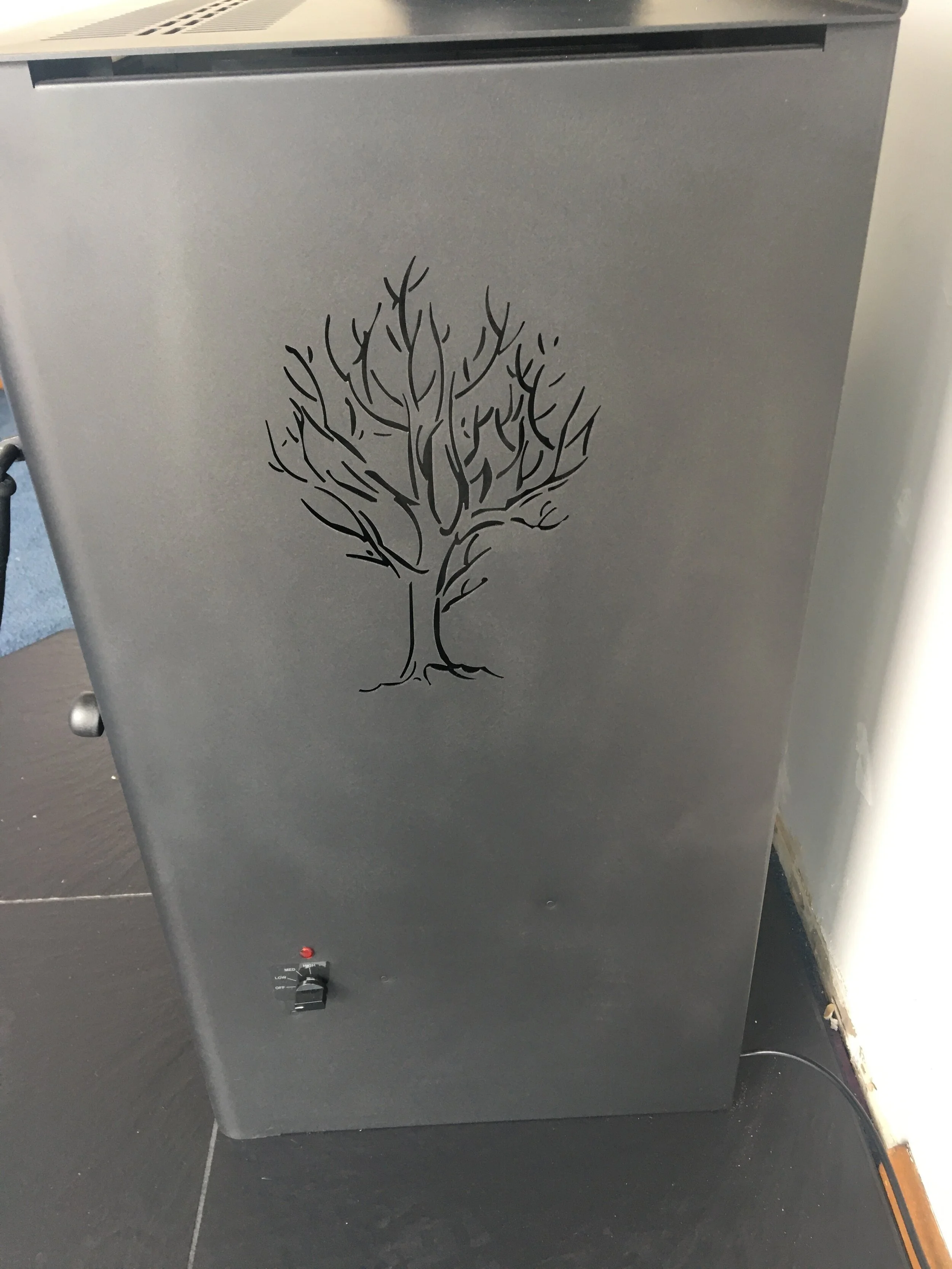

The coonara settler and ranch models comes with option of plan side or a tree cut out in the side panel.
At no extra cost
Inbuilt range
Coonara I500
Heating area 22 squares
Overall Dimensions : H 735mm W 980mm D530mm
Fire box Dimensions : H 595mm W 570mm D430mm
3 Speed Fan
Cast iron firebox liners for loner life
Hearth depth 450mm
25mm side clearance to wooden mantle piece
Australian made

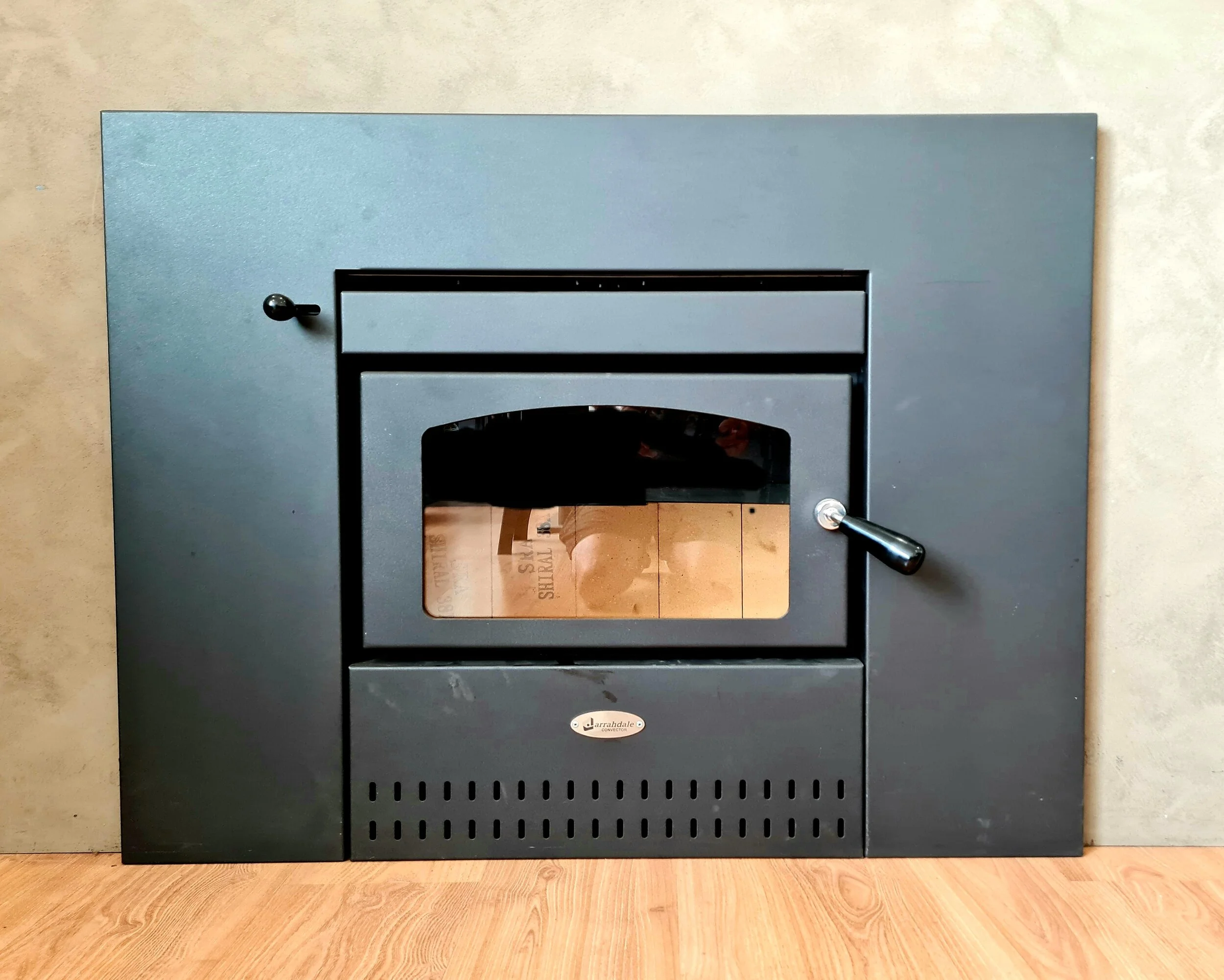

Jarrahdale Convector
Heating area 25 squares 232sq/m
Overall Dimensions : H 750mm W 990mm D540mm
Fire box Dimensions : H 600mm
W 650mm D 450mm
2 Speed Fan
Hearth depth 325mm
Australian made
Kalora 600i
Heating area 30 squares 280sq/m
Overall Dimensions : H 760mm W 1105mm D520mm
Fire box Dimensions : H 605mm W 670mm D 435mm
3 Speed Fan
Hearth depth 550mm
